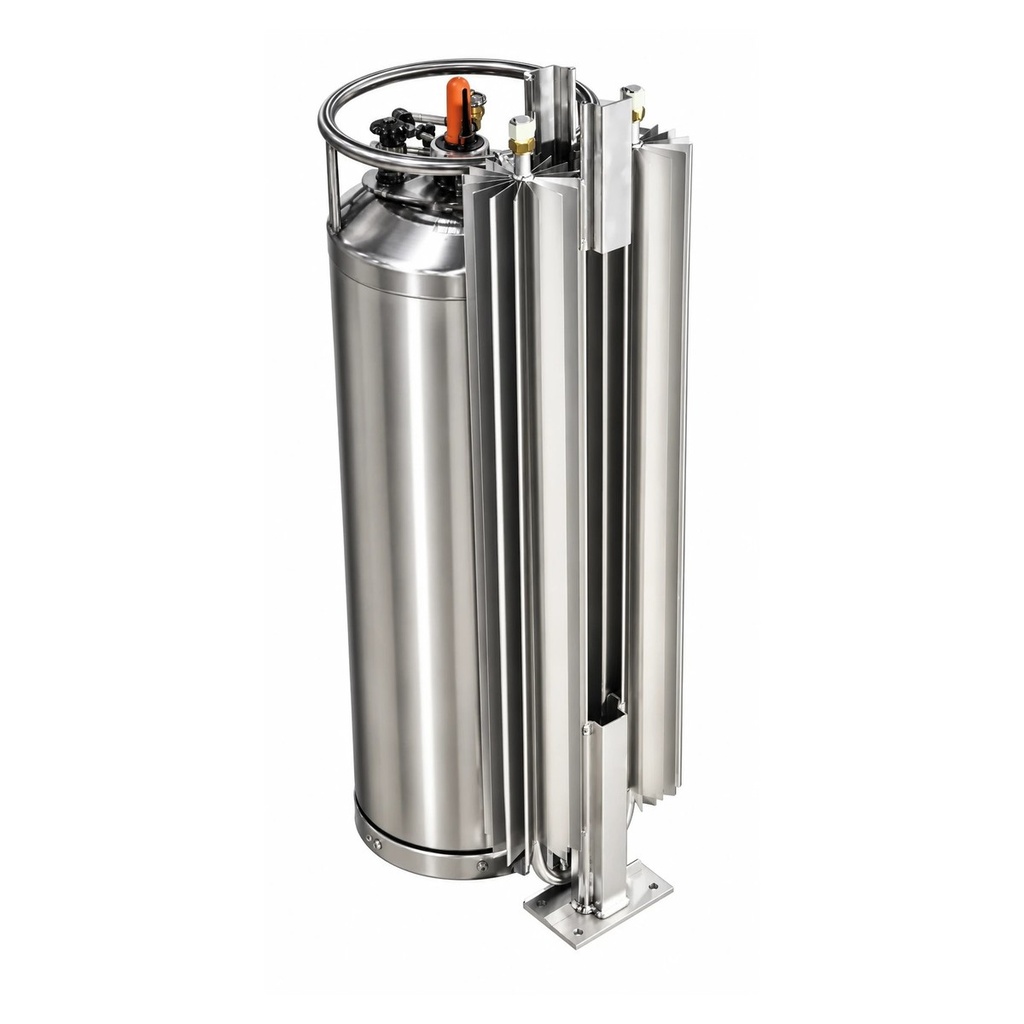

Ambient Air Vaporizer, AL, 1K SCFH, 600 PSIG (D8A-3M, 1/2" FNPT)

https://www.joycan.com/web/image/product.template/4098/image_1920?unique=087a3ac

Raises the gas withdrawal rate of a liquid cylinder by vaporizing liquid taken straight off the cylinder's liquid valve, using heat from the surrounding air. It hangs on the side of the cylinder or stands on its own, and needs no power or other utilities.

  • Flow rating: 1,000 SCFH (1,200 SCFH for intermittent use), nitrogen, oxygen or argon
  • CO2 rating: 28 lb/hr at 300 psig, intermittent use
  • Design pressure: 600 psig
  • Construction: finned aluminum
  • Connections: 1/2" FNPT inlet and outlet

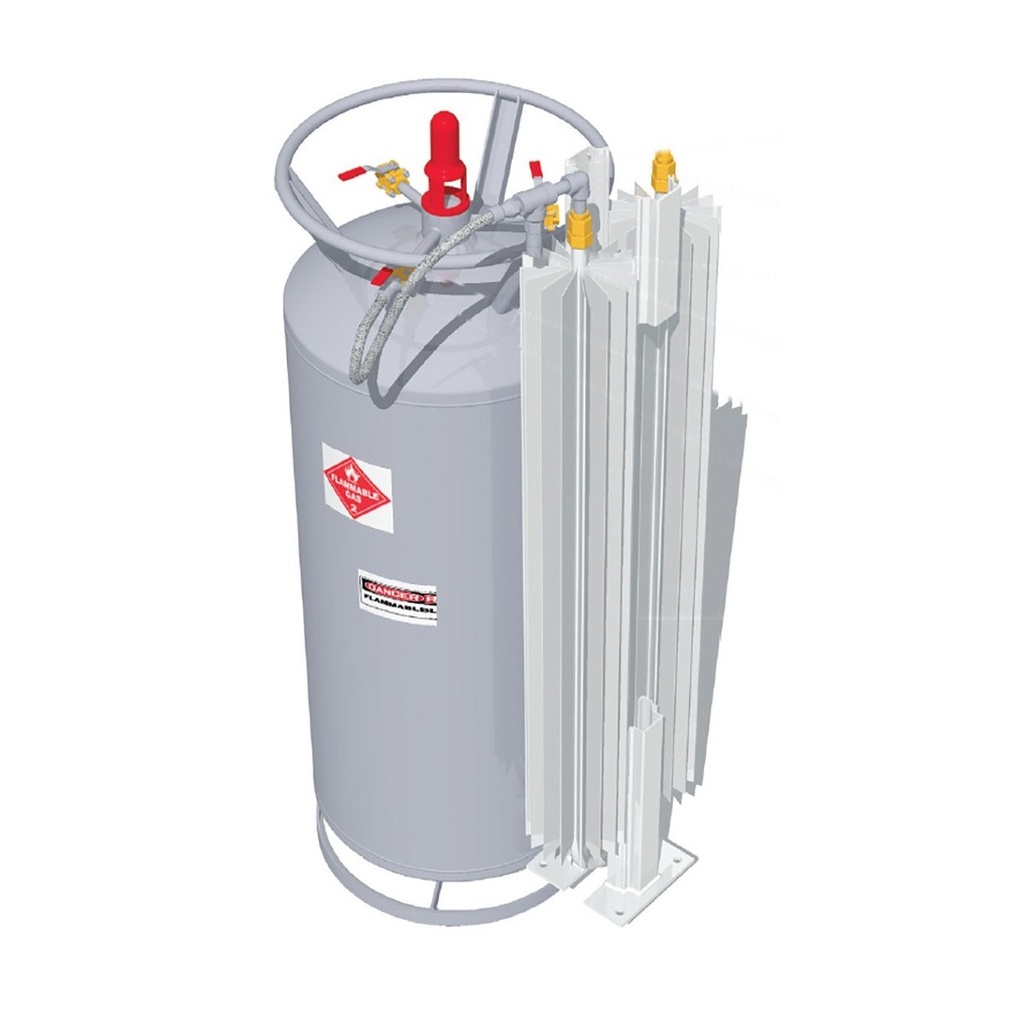

  • Mounting: hangs on the cylinder or free-standing
  • Cleaning: cleaned, sealed and tagged for oxygen service
  • Code: ASME B31.3, CRN registered for all Canadian provinces
  • Utilities: none

For nitrogen or argon, thread a CGA-295 x 1/2" MNPT adapter into the inlet and connect it to the cylinder's liquid valve with a 4-foot CGA-295 armored transfer hose.

$ 2,109.38 2109.38 USD $ 2,109.38

$ 2,109.38

Not Available For Sale

  • Part Type
  • Size
  • Connection
  • Male / Female
  • Material
  • Pressure

This combination does not exist.

Request a Quote
Out of stock right now. Tell us the quantity you need and we'll quote price and lead time.
Contact Us

Terms and Conditions


JoyCan Part Number: 112241

Specifications

Part Type Vaporizer
Size 1/2"
Connection NPT
Male / Female Female
Material Aluminum
Pressure 600 psi
