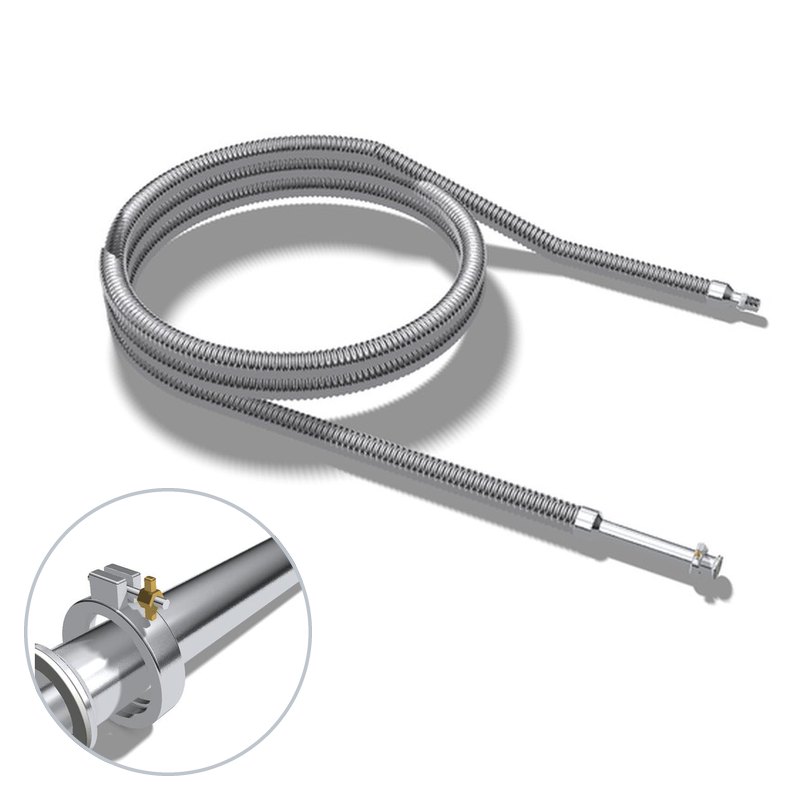

1" ID Flex Hose, 1250F, MPT, 30'
Vacuum-jacketed (VJ) flexible transfer hose, 1" ID, 30' long, Female bayonet 1250 x 1" male NPT.
- Vacuum insulated: stainless inner line inside an evacuated stainless outer jacket, for very low heat leak and minimal LN2 flash loss and frost.
- Jacket: Flex Spiral (corrugated stainless jacket), flexible for routing between tanks, phase separators and dosers.
- Female bayonet 1250: receives a 1250 male bayonet probe and ends in a 1-1/2" sanitary (tri-clamp) ferrule, sealed with a sanitary gasket and hinged clamp.
- 1" male NPT: threads straight into standard pipe fittings, valves and equipment ports.
- Evacuation port on the jacket so the vacuum can be re-pumped in service.
- Part number JSFB1250-360-MN100. Contact us for other lengths and end connections.
Internal Reference:
JSFB1250-360-MN100
Specifications
| Part Type | Hose |
| Size | 1" |
| Connection | 1250 Bayonet, NPT |
| Male / Female | Male, Female |
| Length | 30 ft |
| Hose Type | Flex |
