3/4" ID, 1250F, 625M, 36'

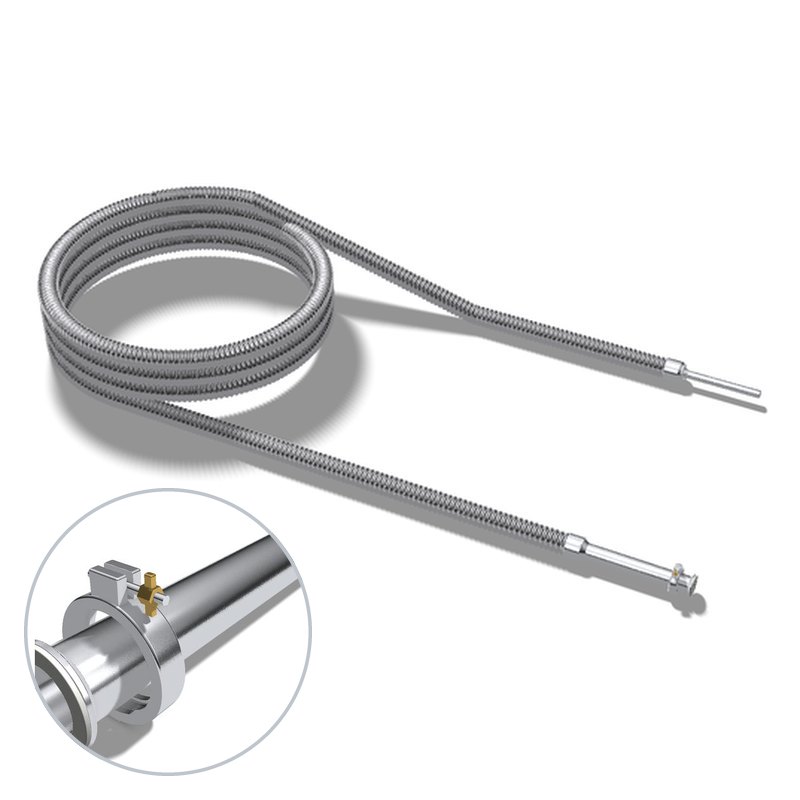

Vacuum-jacketed (VJ) flexible transfer hose, 3/4" ID, 36' long, Female bayonet 1250 x Male bayonet 625.
- Vacuum insulated: stainless inner line inside an evacuated stainless outer jacket, for very low heat leak and minimal LN2 flash loss and frost.
- Jacket: Flex Spiral (corrugated stainless jacket), flexible for routing between tanks, phase separators and dosers.
- Female bayonet 1250: receives a 1250 male bayonet probe and ends in a 1-1/2" sanitary (tri-clamp) ferrule, sealed with a sanitary gasket and hinged clamp.
- Male bayonet 625: 0.75" OD probe that slides into a 625 female bayonet; the joint is clamped with a 1-1/2" sanitary (tri-clamp) clamp and gasket.
- Evacuation port on the jacket so the vacuum can be re-pumped in service.
- Part number JSFB1250-432-MB625. Contact us for other lengths and end connections.
Internal Reference:
JSFB1250-432-MB625
Specifications
| Part Type | Hose |
| Size | 3/4" |
| Connection | 1250 Bayonet, 625 Bayonet |
| Male / Female | Male, Female |
| Length | 36 ft |
