Dewar Filler Hose 1/2" ID, VJ, CGA 295 Ends, 10'

Dewar Filler Hose 1/2" ID, VJ, CGA 295 Ends, 10'

https://www.joycan.com/web/image/product.template/3565/image_1920?unique=10ab530

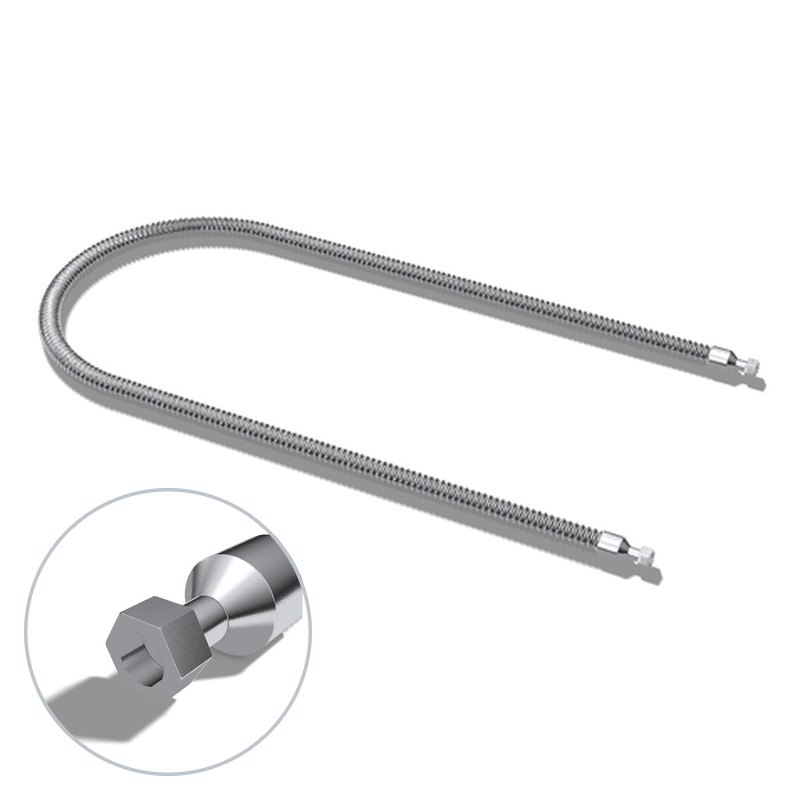

Vacuum-jacketed (VJ) flexible transfer hose, 1/2" ID, 10' long, CGA 295 female x CGA 295 female.

  • Vacuum insulated: stainless inner line inside an evacuated stainless outer jacket, for very low heat leak and minimal LN2 flash loss and frost.
  • Jacket: Flex Spiral (corrugated stainless jacket), flexible for routing between tanks, phase separators and dosers.
  • Both ends - CGA 295 female nut: connects directly to the liquid valve of a standard LN2 dewar.
  • Evacuation port on the jacket so the vacuum can be re-pumped in service.
  • Part number JSFG295-120-FG295. Contact us for other lengths and end connections.

$ 2,849.94 2849.94 USD $ 2,849.94

$ 2,849.94

Not Available For Sale

  • Part Type
  • Size
  • Connection
  • Length
  • Insulation

This combination does not exist.

Contact Us

Terms and Conditions


Internal Reference: JSFG295-120-FG295

Specifications

Part Type Hose
Size 1/2"
Connection CGA 295
Length 10 ft
Insulation Vacuum Jacketed
