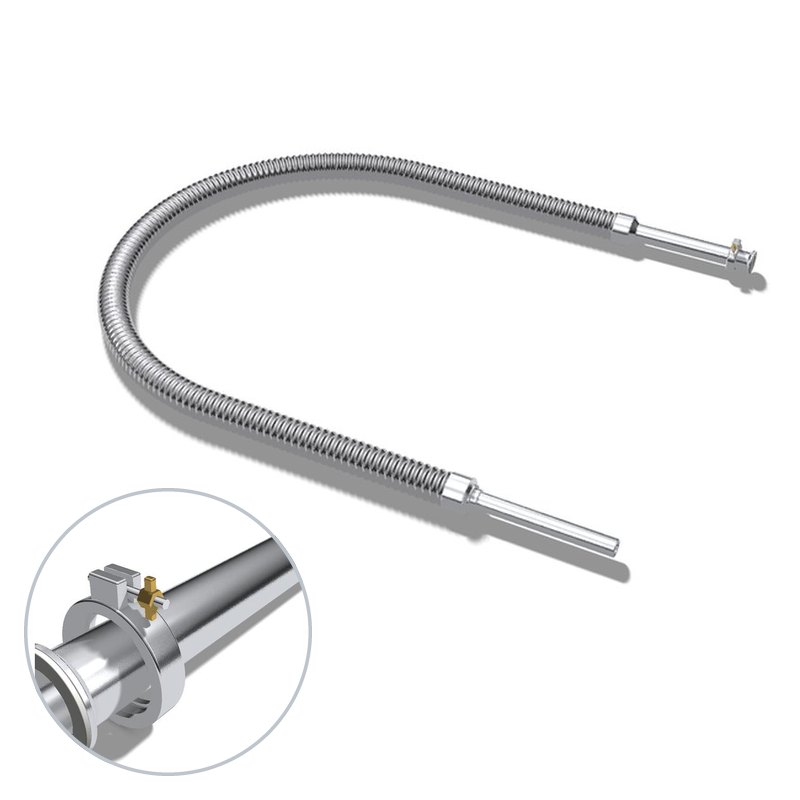

1" ID VJ Flex, 1250M, 1250, SW, 8'
Vacuum-jacketed (VJ) flexible transfer hose, 1" ID, 8' long, Male bayonet 1250 x Female bayonet 1250.
- Vacuum insulated: stainless inner line inside an evacuated stainless outer jacket, for very low heat leak and minimal LN2 flash loss and frost.
- Jacket: Flex Spiral (corrugated stainless jacket), flexible for routing between tanks, phase separators and dosers.
- Male bayonet 1250: 1.25" OD probe that slides into a 1250 female bayonet; the joint is clamped with a 1-1/2" sanitary (tri-clamp) clamp and gasket.
- Female bayonet 1250: receives a 1250 male bayonet probe and ends in a 1-1/2" sanitary (tri-clamp) ferrule, sealed with a sanitary gasket and hinged clamp.
- Evacuation port on the jacket so the vacuum can be re-pumped in service.
- Part number JSMB1250-096-FB1250. Contact us for other lengths and end connections.
Internal Reference:
JSMB1250-096-FB1250
Specifications
| Part Type | Hose |
| Size | 1" |
| Connection | 1250 Bayonet |
| Male / Female | Male |
| Length | 8 ft |
| Hose Type | Spiral Flex |
| Insulation | Vacuum Jacketed |
