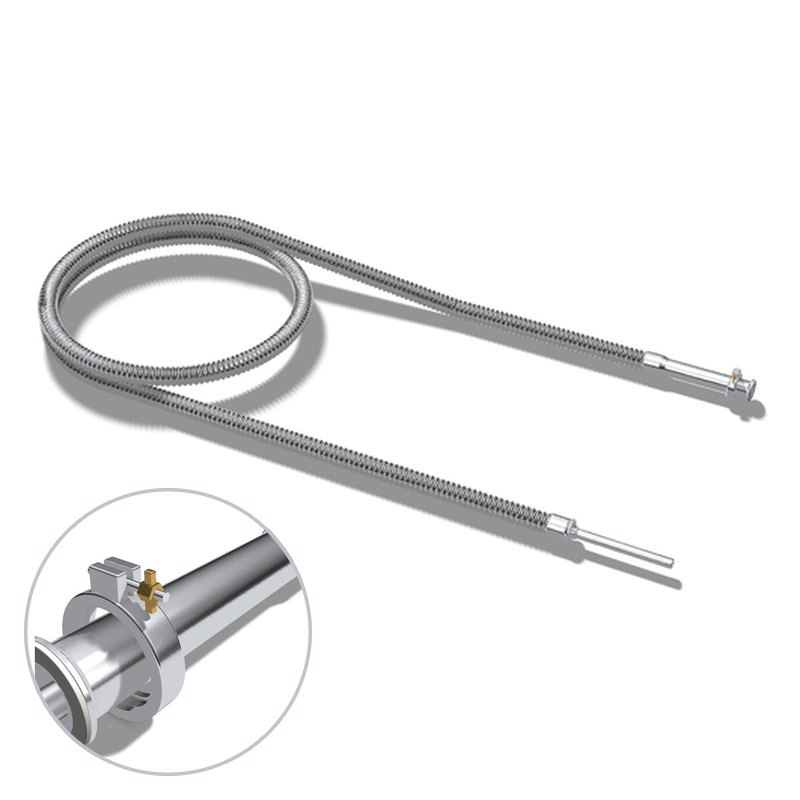

VIP, Flex, 625M, 625F, 199"
Vacuum-jacketed (VJ) flexible transfer hose, 1/2" ID, 16' 7" long, Male bayonet 625 x Female bayonet 625.
- Vacuum insulated: stainless inner line inside an evacuated stainless outer jacket, for very low heat leak and minimal LN2 flash loss and frost.
- Jacket: Flex Spiral (corrugated stainless jacket), flexible for routing between tanks, phase separators and dosers.
- Male bayonet 625: 0.75" OD probe that slides into a 625 female bayonet; the joint is clamped with a 1-1/2" sanitary (tri-clamp) clamp and gasket.
- Female bayonet 625: receives a 625 male bayonet probe and ends in a 1-1/2" sanitary (tri-clamp) ferrule, sealed with a sanitary gasket and hinged clamp.
- Evacuation port on the jacket so the vacuum can be re-pumped in service.
- Part number JSMB625-199-FB625. Contact us for other lengths and end connections.
Internal Reference:
JSMB625-199-FB625
Specifications
| Connection | 625 Bayonet |
| Male / Female | Male, Female |
| Length | 199 in |
| Insulation | Vacuum Jacketed |
