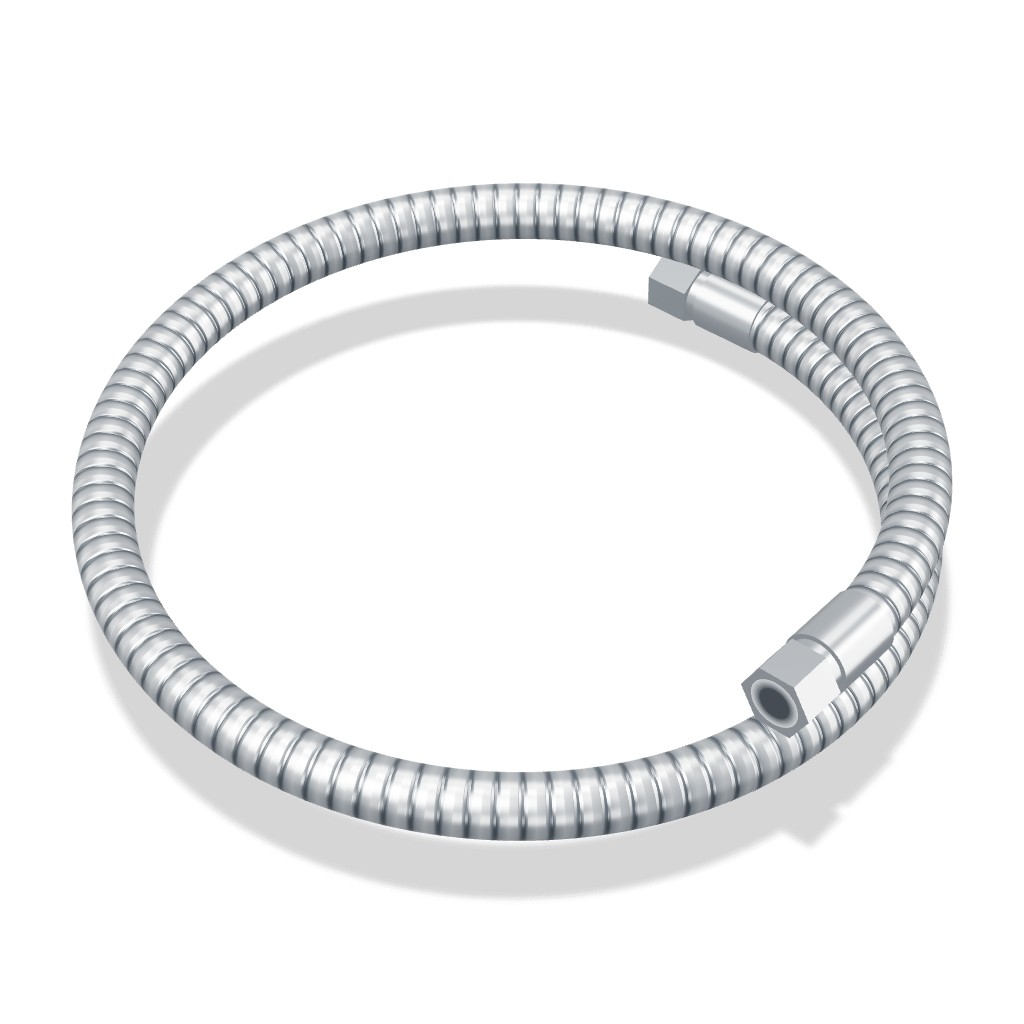

NVJ Armored Cryogenic Transfer Hose, 1/2" ID, CGA-295 F x CGA-295 F, 4', 1000 psig

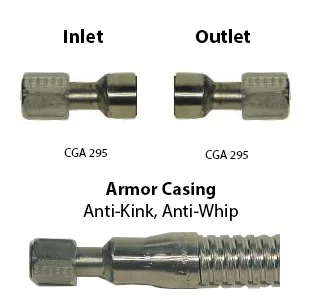

4-foot stainless transfer hose for liquid nitrogen and argon, with a 1/2" ID corrugated core, an outer armor wrap that resists kinking, and a CGA-295 female hex nut on each end. Not vacuum jacketed. Stamped 1000 psig MAWP along with its date of manufacture. Connects a liquid cylinder to a manifold, a manifold to equipment, or any two male CGA-295 fittings such as the AGM295-R-NM50.
Internal Reference:
ZWFG295-048-FG295
Specifications
| Part Type | Hose |
| Size | 1/2" |
| Connection | CGA 295 |
| Length | 4 ft |
| Hose Type | Armored |
| Insulation | Non-Vacuum Jacketed |
| Pressure | 1000 psi |
