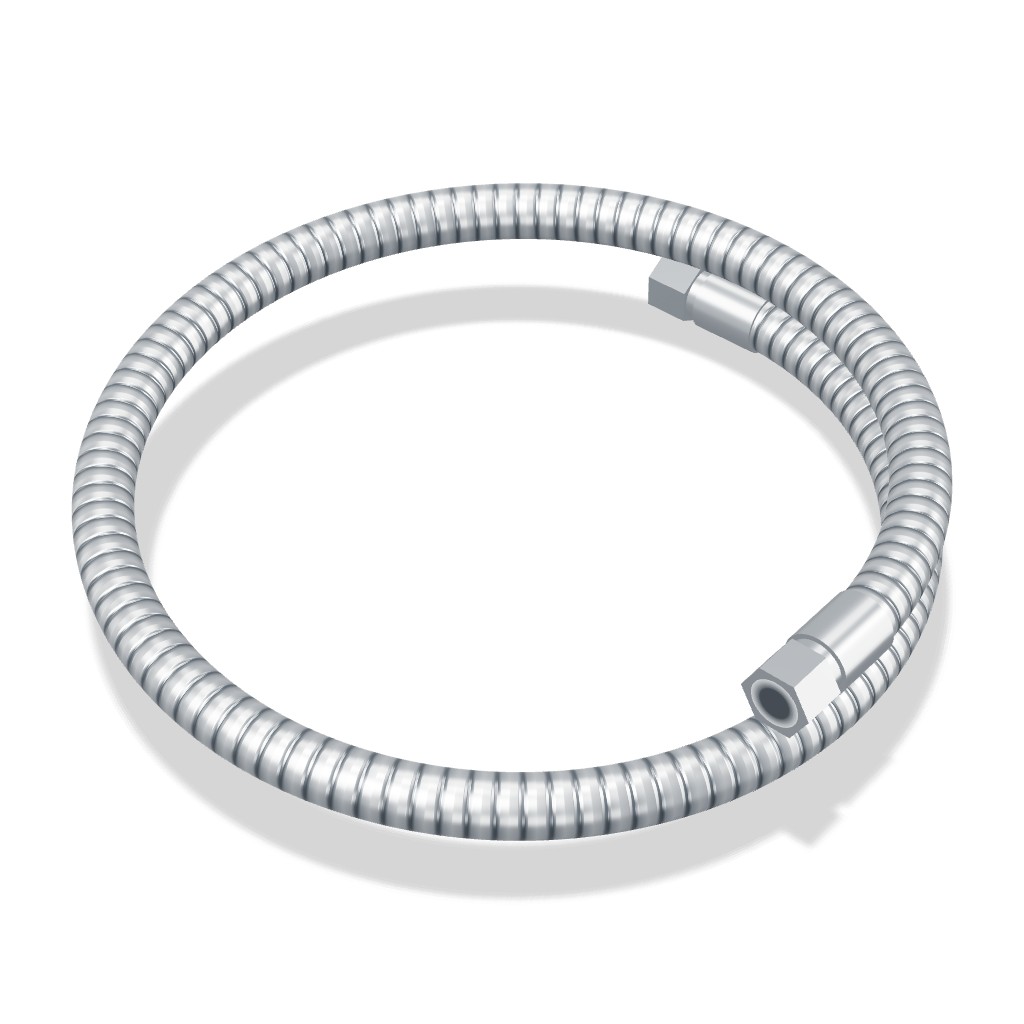

NVJ Armored Cryogenic Transfer Hose, 1/2" ID, CGA-295 F x CGA-295 F, 6', 1000 psig

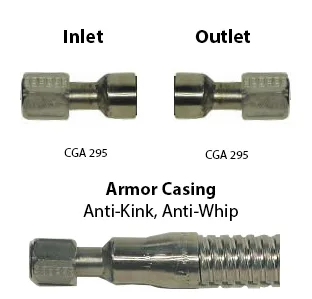

6-foot armored stainless transfer hose for liquid nitrogen and argon. The extra two feet over a 4-foot hose give room to park a liquid cylinder where it lands and turn it as needed without pulling the line tight. A 1/2" ID corrugated stainless core sits inside an armor wrap that guards against kinking and crushing, with a CGA-295 female hex nut on each end. Non-vacuum-jacketed. Stamped 1000 psig MAWP along with its month and year of manufacture. Mates with any male CGA-295 fitting, such as the CGA-295 x 1/2" MNPT adapter. Where both ends are fixed and close together, the 4-foot version is a tidier fit.
Internal Reference:
ZWFG295-072-FG295
Specifications
| Part Type | Hose |
| Size | 1/2" |
| Connection | CGA 295 |
| Length | 6 ft |
| Hose Type | Armored |
| Insulation | Non-Vacuum Jacketed |
| Pressure | 1000 psi |
