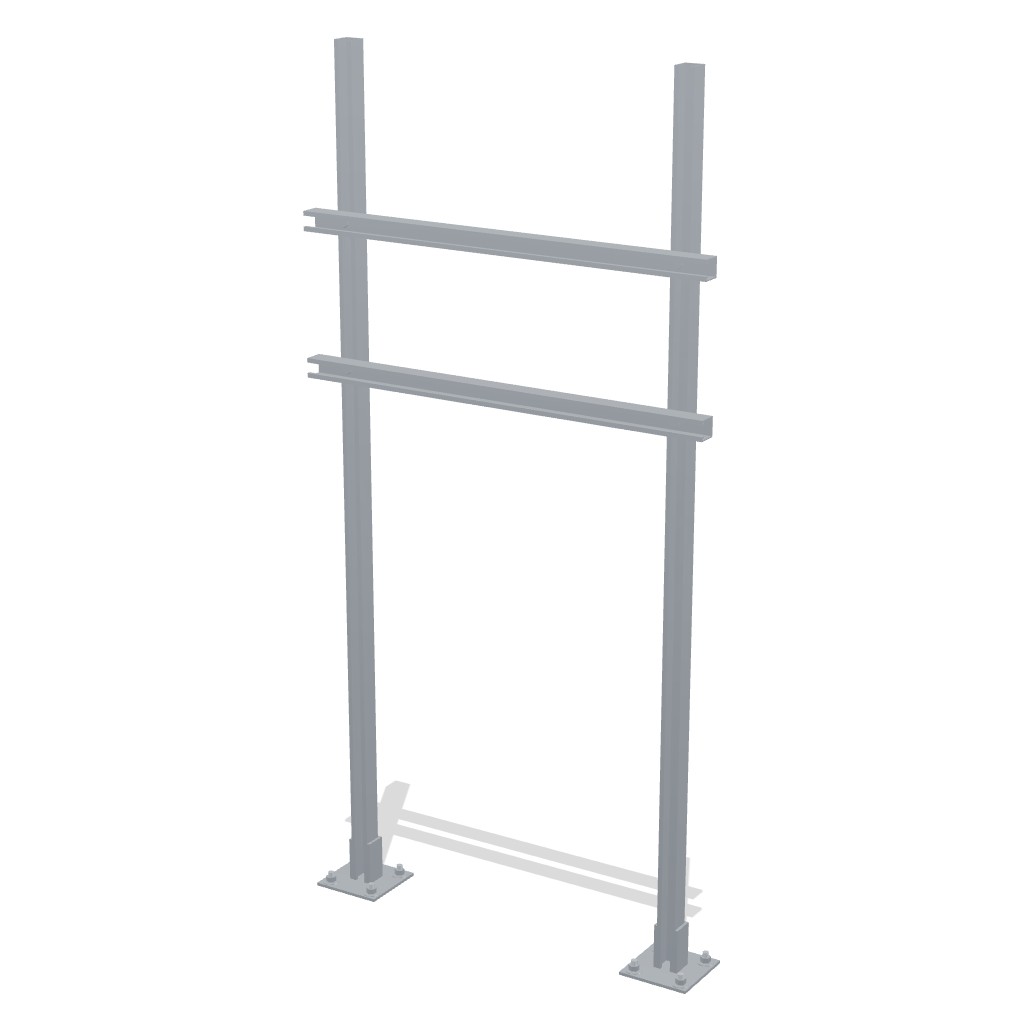

ADF 105 Floor Stand, 304 SS Strut
Free-standing 304 stainless floor stand for an automatic dewar filler or similar wall-mount panel, for spots where there is no wall to hang it on. Two 6-foot strut channel posts stand in bolt-down floor bases, and two 3-foot strut rails span the posts. The equipment bolts to the rails with spring channel nuts that slide to line up with its mounting holes, and the rails can be set at any height on the posts to suit the dewars being filled.
- Fits: the ADF 105 automatic dewar filler (26" long, about 54 lb) or other panels up to 36" wide
- Construction: 1-5/8" 304 stainless strut channel, 316 stainless spring channel nuts, 18-8 stainless bolts and washers
- Size: 72" tall, posts on 30" centers, 6" x 6" x 1/4" base plates
- Floor mounting: eight 1/2" stainless wedge anchors with fender washers, into an existing concrete floor
JoyCan Part Number:
1461919
Specifications
| Part Type | Stand |
| Material | Stainless Steel |
