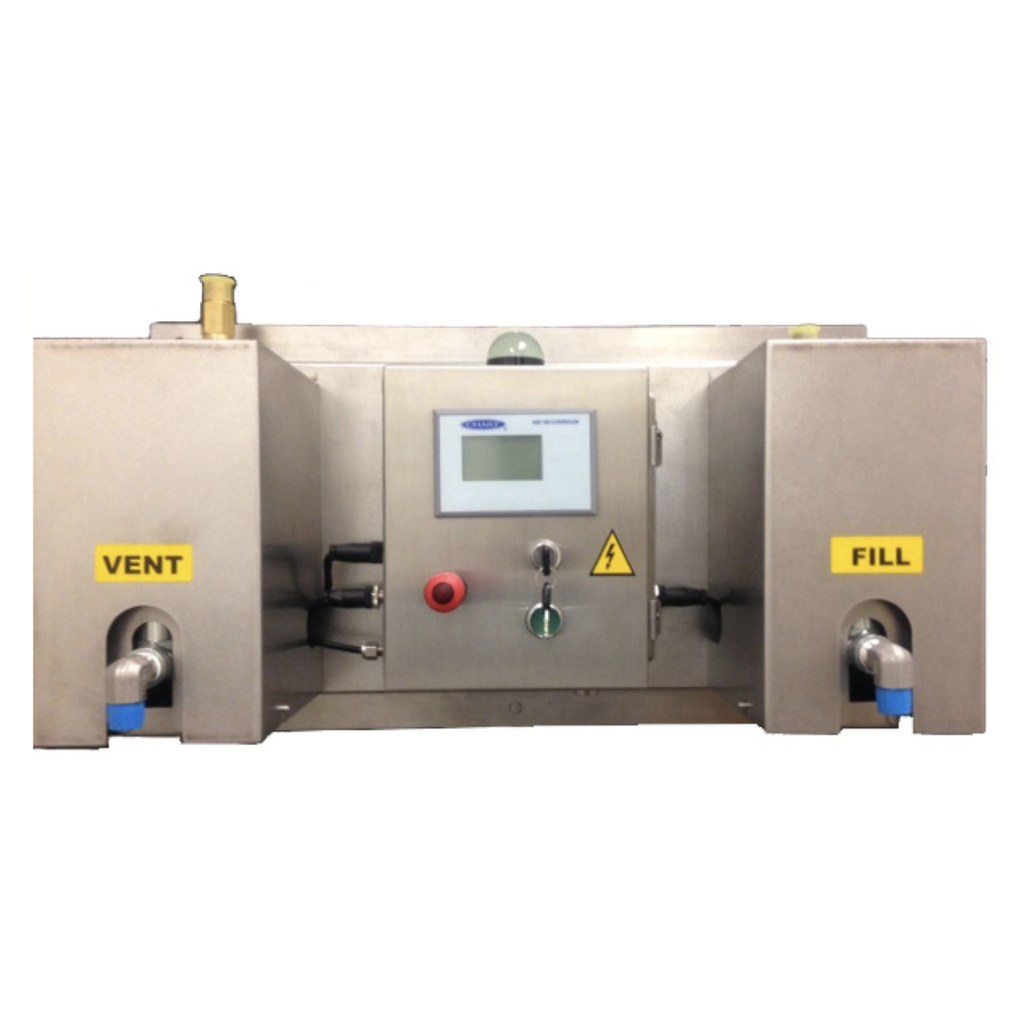

ADF 105 (Automatic Dewar Filler)

Chart ADF105 automatic dewar filling station. Push one button and walk away: cryogenic sensors detect a full liquid cylinder and dual cryogenic valves shut off the fill, keeping fill pressure in the dewar so it is ready to use immediately. No scale, no overfilling, no wasted LN2.

• Fills standard 160 L to 240 L low-pressure liquid nitrogen dewars (max 125 psi)
• Feed from a bulk tank or piping system, 22 to 125 psi inlet
• Vent safety interlock, max-fill shut-off timer and security key switch
• Stainless steel case, NEMA 4X / CE weather-tight controls, indoor or covered outdoor installation
• 115 V single phase, 3 A (220 V option)
• 26" L x 15" H x 10" D, 54 lb
• Includes two 4 ft non-vacuum-insulated flex hoses
• 2-year warranty
