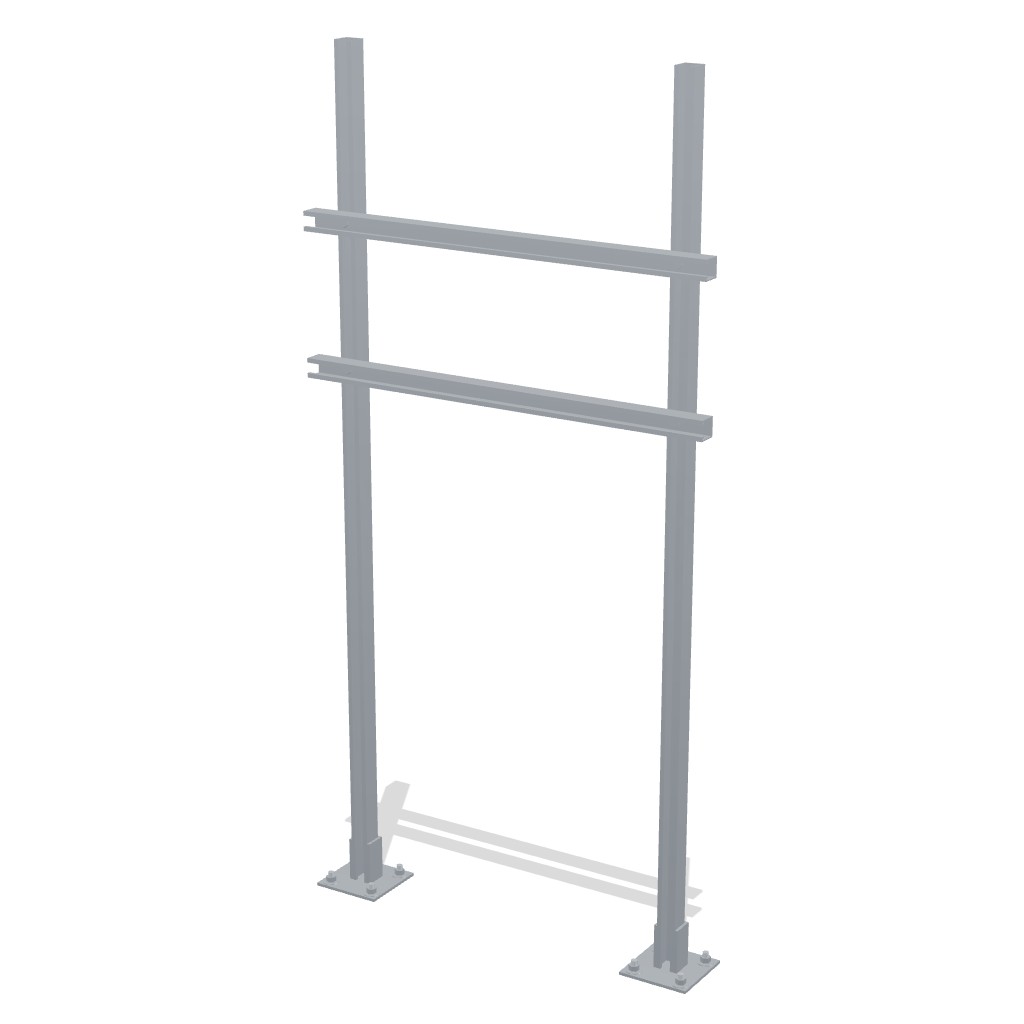

ADF 105 Floor Stand, Welded 304 SS
Welded 304 stainless floor stand for an automatic dewar filler, for locations with no wall to mount on. Two 2" square tube uprights and a mitered top rail carry a 14 ga mounting panel, on bolt-down feet with gussets. Side plates hold an oxygen monitor and a phase separator, and a formed rest keeps the fill hoses up off the floor.
- Fits: the ADF 105 automatic dewar filler, six 7/16" holes on its 24" x 13.3" mounting pattern
- Construction: 2" x 2" x 0.120" wall 304 stainless square tube, TIG welded, #4 brushed finish, passivated
- Size: 78" tall, 32" wide frame, 3'-2" x 2'-2" footprint, about 90 lb
- Mounting panel: 28" x 20", top at 76"
- Accessory plates: 10" x 10" monitor plate at 67" to 77", 3" x 8" separator tab slotted for a 1/2" band clamp, hose rest at 46"
- Floor mounting: four 9/16" holes for 1/2" stainless wedge anchors
JoyCan Part Number:
1461919
Specifications
| Part Type | Stand |
| Material | Stainless Steel |
