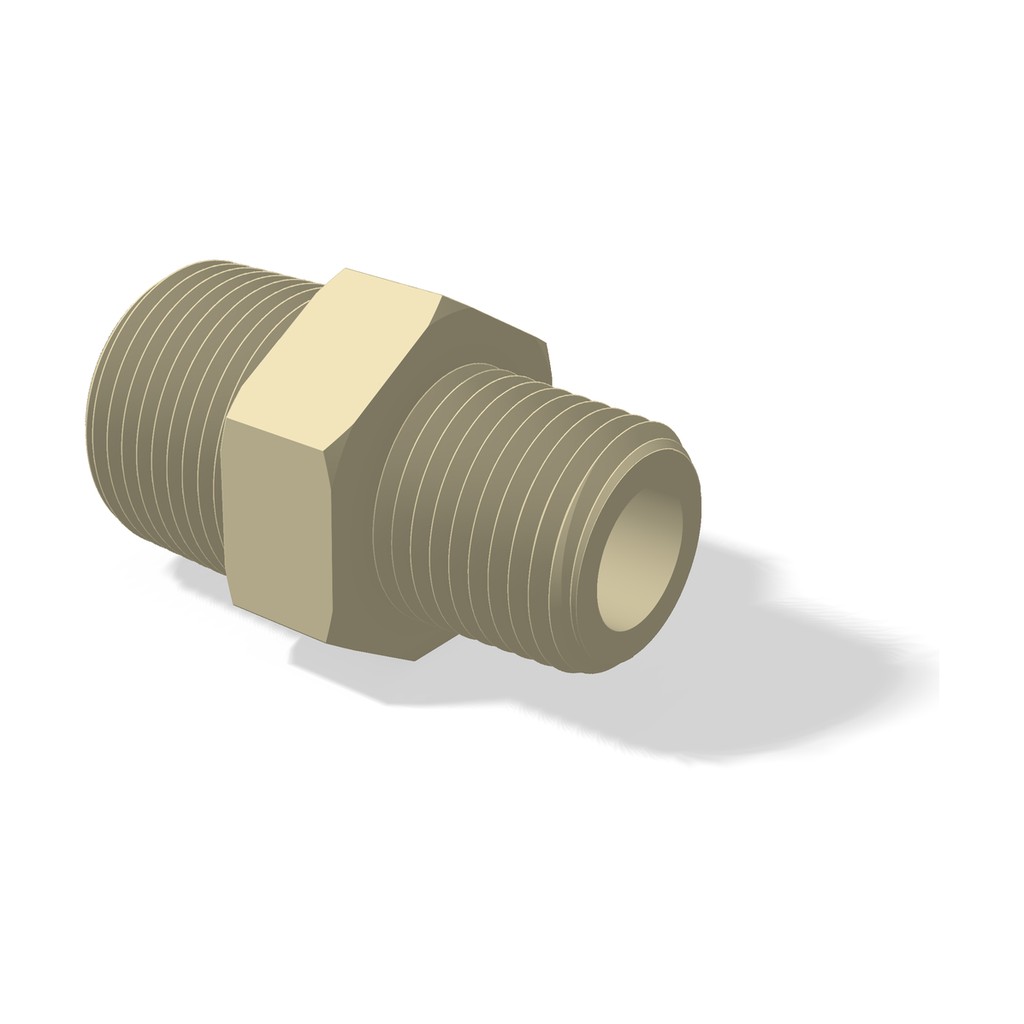

Brass Hex Reducing Nipple, 3/4" MNPT x 1/2" MNPT, 3800 PSI
Solid brass hex reducing nipple with 3/4" male NPT on one end and 1/2" male NPT on the other, with a 1-1/8" hex for wrenching. Machined with precision rolled threads and rated to 3,800 psi, it joins a 3/4" female port directly to a 1/2" female port. A typical use is threading a Compact Gauged Gas Regulator Assembly onto the 1/2" outlet of a D8A-3M ambient air vaporizer.
- Ends: 3/4" MNPT x 1/2" MNPT
- Material: 360 brass
- Pressure rating: 3,800 psi at room temperature
- Overall length: 1-15/16"
- Service: nitrogen, argon, oxygen, air and other gases
To join two male ends instead, use the RNF75-R-NF50 reducing coupling.
JoyCan Part Number:
NNM75-R-NM50
Specifications
| Part Type | Reducer |
| Size | 1/2", 3/4" |
| Connection | NPT |
| Male / Female | Male |
| Material | Brass |
| Pressure | 3800 psi |
