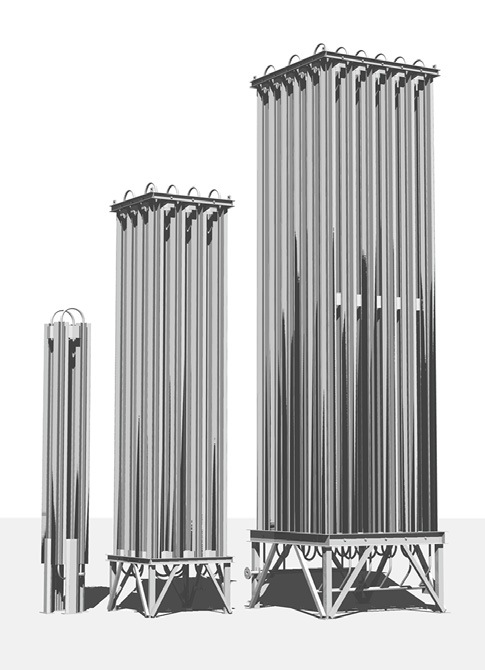

Ambient Air Vaporizer, AL, 4.8K SCFH, 600 PSIG (SG50HF, 3/4" MNPT)
Turns liquid nitrogen or argon into ambient-temperature gas using heat from the surrounding air. It needs no power, steam or water, so there is nothing to run or meter once it is piped in. The wide 4" gap between the aluminum fin tips leaves room for frost to build between defrosts, which keeps gas flowing through long fill and production runs.
- Flow rating: 4,800 SCFH nitrogen
- Design pressure: 600 psig
- Construction: finned aluminum extrusions on a welded aluminum base frame
- Fin spacing: 4" between fin tips
- Connections: 3/4" MNPT inlet and outlet
- Size: about 44" x 22" footprint, 12'-8" tall
- Weight: about 440 lb dry
- Site ratings: 100 mph wind and seismic Zone 4, piped to ASME B31.3
- Utilities: none
Feed the inlet from a Hot-Swap Dewar Manifold through a 4-foot CGA-295 transfer hose, a CGA-295 x 1/2" MNPT adapter and a 3/4" x 1/2" reducing coupling. On the outlet, a Compact Gauged Gas Regulator Assembly threads straight on to set delivery pressure, and a 20-foot 3/4" flex hose carries the gas to the point of use.
Internal Reference:
1122197-50
Specifications
| Part Type | Vaporizer |
| Size | 3/4" |
| Connection | NPT |
| Male / Female | Male |
| Material | Aluminum |
| Pressure | 600 psi |
