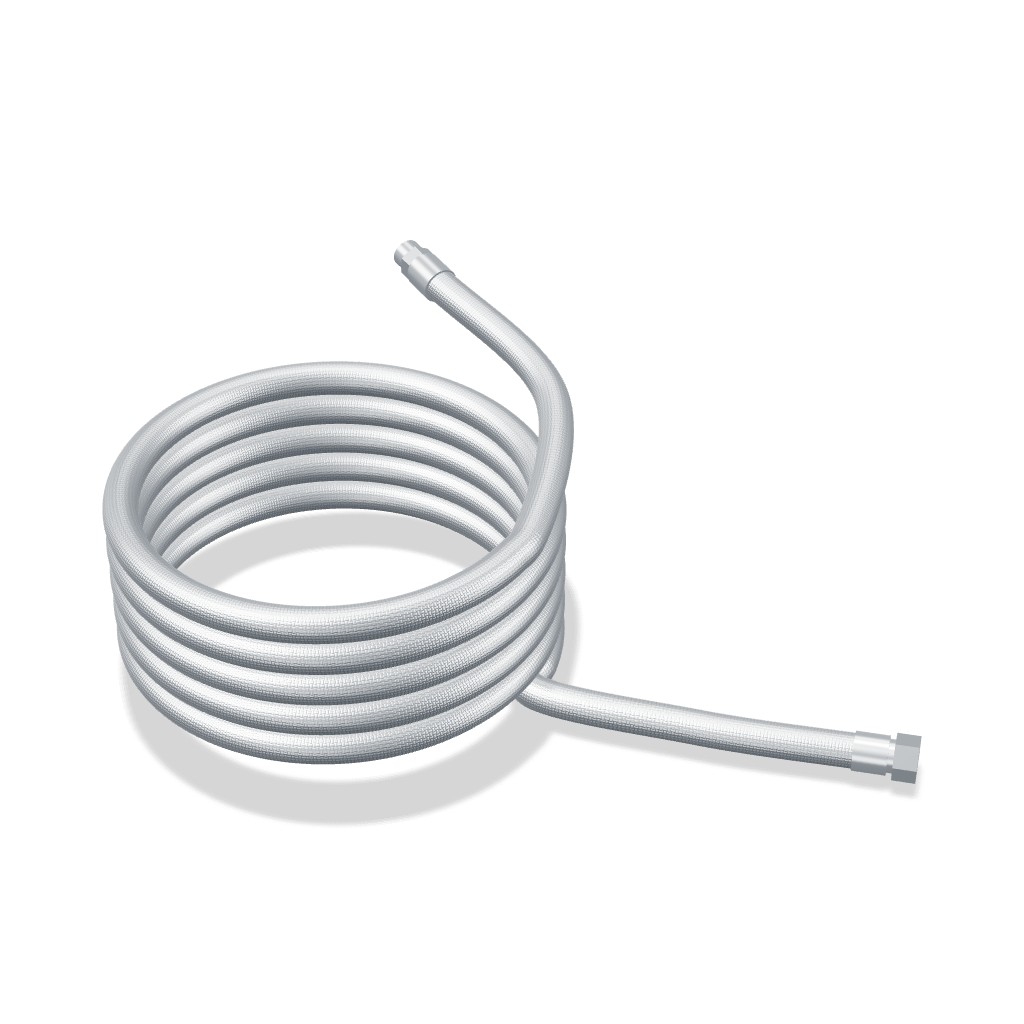

NVJ Flex Braided Cryogenic Hose, 3/4" ID, 3/4" FNPT x 3/4" MNPT, 20', 792 psig

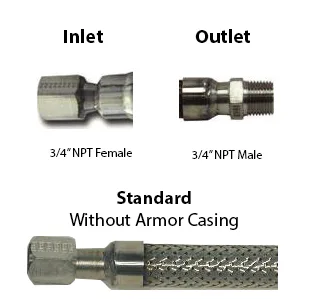

20-foot non-vacuum-jacketed transfer line with a 3/4" ID stainless corrugated core under a stainless braid. One end is 3/4" female NPT and the other 3/4" male NPT, both on stainless fittings, and the hose is marked 792 psig MAWP. Handles cryogenic liquid as well as cold or ambient gas, so it suits gas lines that may occasionally see very cold flow. Join it to a 3/4" male end with the ZWMN75-024-MN75 flex hose or a CNF75-R-NF75 coupling.
Internal Reference:
ZWFN75-240-MN75
Specifications
| Part Type | Hose |
| Size | 3/4" |
| Connection | NPT |
| Male / Female | Male, Female |
| Length | 20 ft |
| Hose Type | Braided Flex |
| Insulation | Non-Vacuum Jacketed |
| Pressure | 792 psi |
