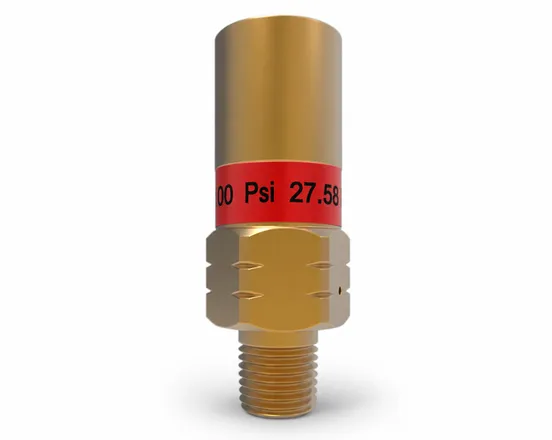

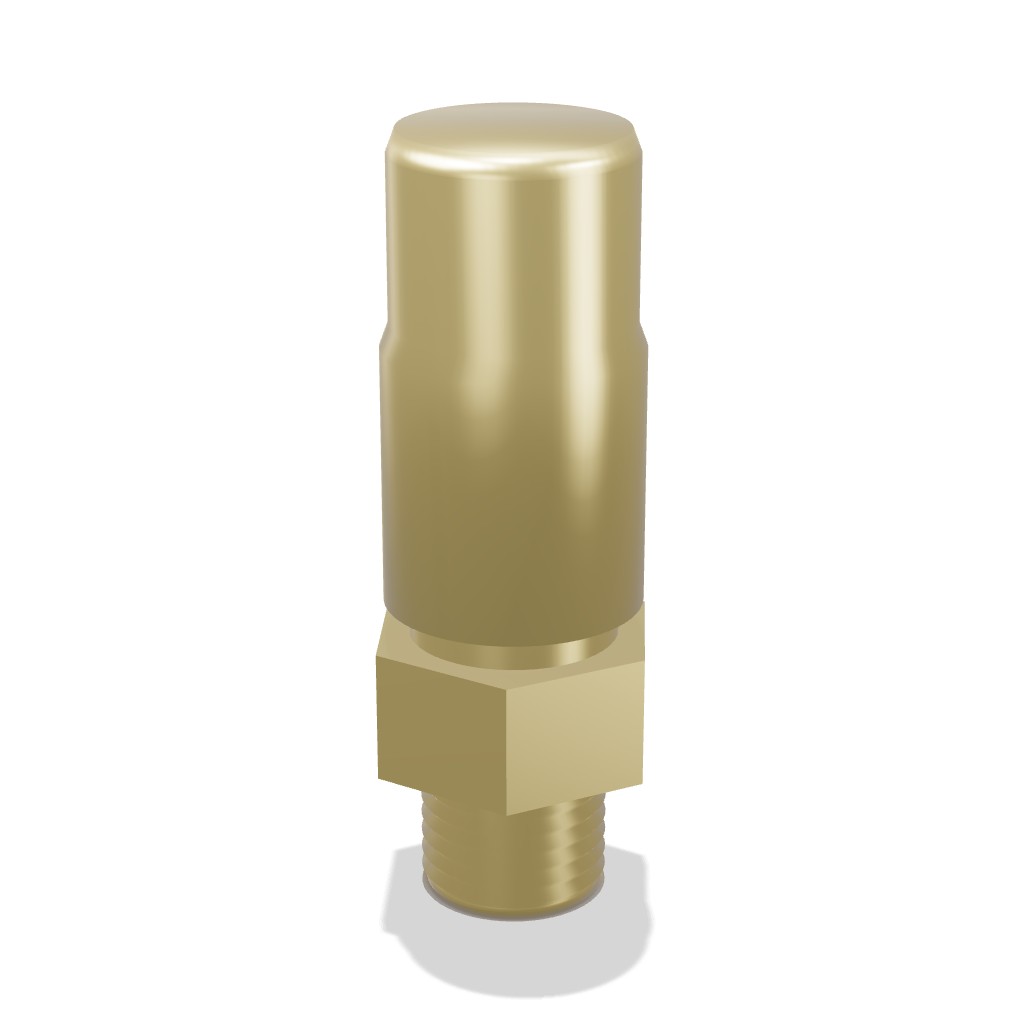

Cryogenic Relief Valve, 1/4" MNPT, 300 PSI (Generant)
Brass cryogenic safety relief valve with a 1/4" male NPT inlet, preset at 300 psig and sealed so the setting cannot be changed in the field. Install one anywhere liquid nitrogen or argon can be trapped between two closed valves: as the liquid warms and expands, the valve lifts, vents the excess and reseats. Goes onto a 3/8" female port with a BNM375-R-NF25 bushing.
Internal Reference:
31822
Specifications
| Part Type | Relief Valve |
| Size | 1/4" |
| Connection | NPT |
| Male / Female | Male |
| Pressure | 300 psi |
