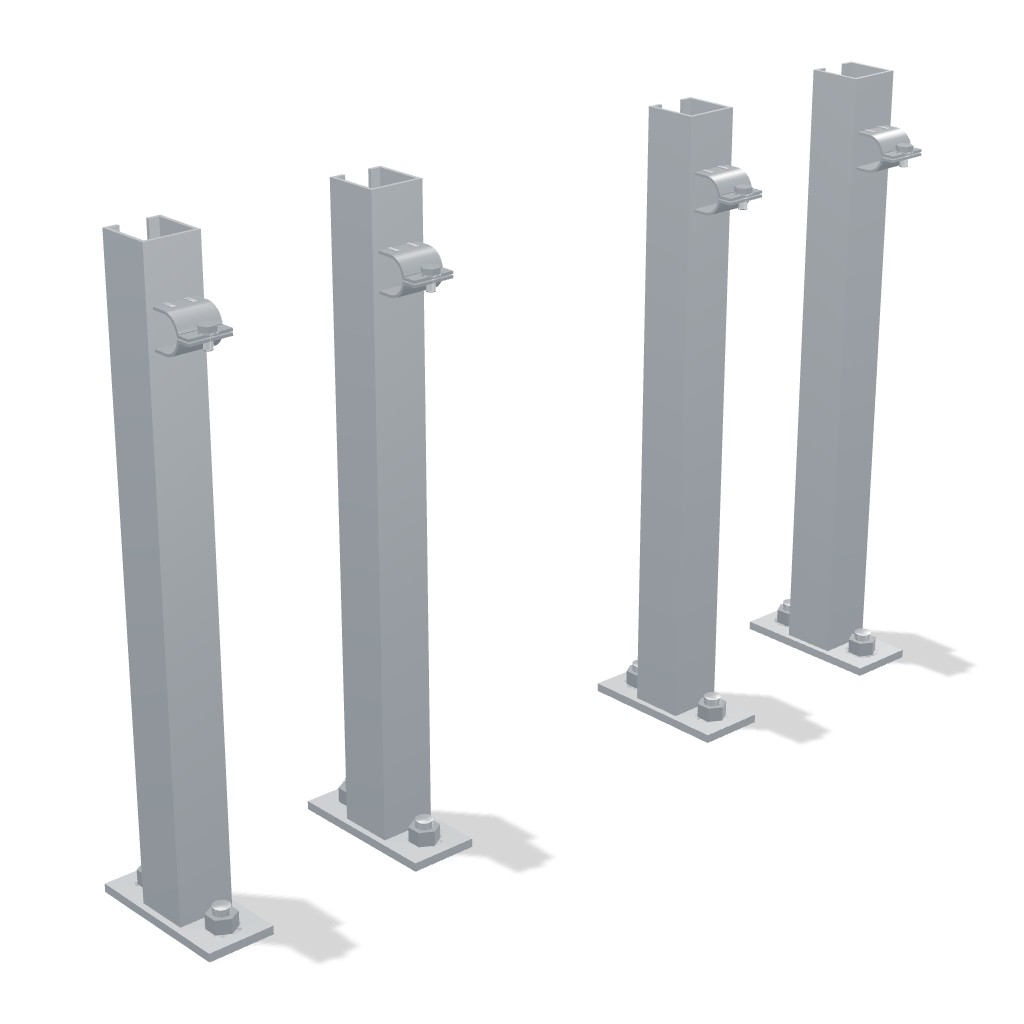

Stainless Manifold Floor Stand
Gets a horizontal pipe manifold off the floor and holds it steady at a 16-1/8" centerline. Each post's one-piece stainless clamp drops into the open face of the strut channel and draws tight with a captured screw, so the posts need no drilling or machining.
- Posts: four 18" tall, 1-5/8" solid-back 304 stainless strut posts on welded base plates
- Clamps: four one-piece 304 stainless strut pipe clamps for 1/2" pipe (0.84" OD)
- Anchors: eight 1/2"-13 x 3-3/4" 316 stainless wedge anchors for an existing concrete slab
- Pipe centerline: 16-1/8" above the floor
- Fits: the Hot-Swap Dewar Manifold for Vaporizer, Non-VJ
Internal Reference:
131919
Specifications
| Part Type | Stand |
| Material | Stainless Steel |
