NVJ Flex Hose, 316 SS Double Braid, 3/4" MNPT x 3/4" MNPT, 2'

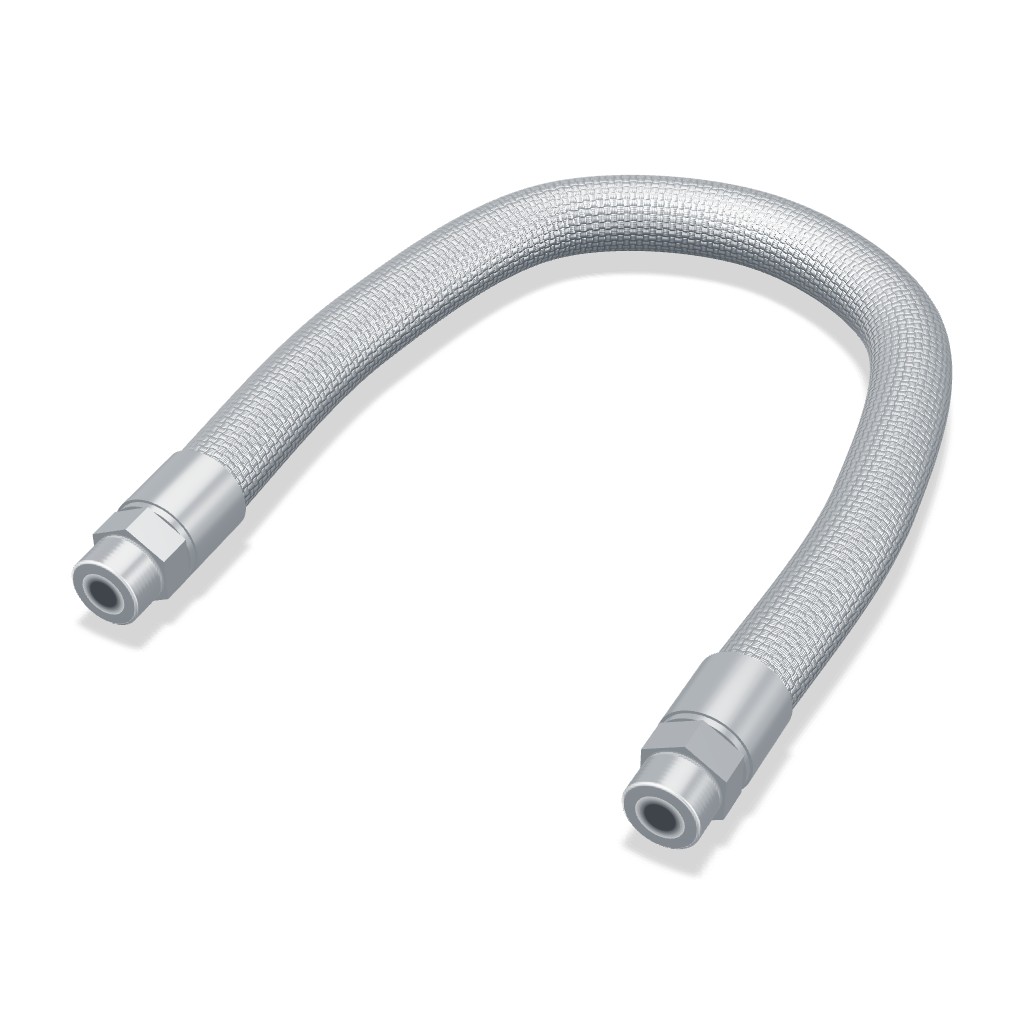

Short flexible connector, 2 feet long with a 3/4" ID: 316 stainless corrugated hose under two layers of 316 stainless braid, with 3/4" male NPT at each end. Rated 3,600 psi at 72°F and usable from -325°F to 1,200°F. Takes up misalignment, vibration and thermal shrinkage so rigid piping does not load regulators, valves or equipment nozzles. Mates with female 3/4" NPT, such as the outlet of the gas delivery regulator or the female end of the ZWFN75-240-MN75 hose.
Internal Reference:
ZWMN75-024-MN75
Specifications
| Part Type | Hose |
| Size | 3/4" |
| Connection | NPT |
| Male / Female | Male |
| Material | Stainless Steel |
| Length | 2 ft |
| Hose Type | Braided Flex |
| Insulation | Non-Vacuum Jacketed |
